7/8'' Mini-Change 5pins Front Panel Mount Female Connector Solder Contacts
Product Description
Mini-change7/8'' panel mount connector
Electrical Data
Shell material: PBT(UL 94 V-0)
Matreial of contact body: PUR/PA(UL 94 HB)
Wire gauge: max.1.5mm(max.awg16)
Contact material: CuZn(brass)
Termination: threaded
Rated current: 9A
Temperature range:-40°C~+85°C
Rated voltage: 250v
Rated impluse voltage : 4000v
Overvoltage categorie: three
Cable outlet: 6-8mm,10-12mm, 12-14mm,14-18mm
| General Characteristics |
| Number of contact | 3 | 4 | 5 |
| Locking system | screw 7/8''-16UNF |
| Termination | solder, moulded on cable, screw clamp |
| Wire guage in mm² | max.1.5 |
| Wire guage in AWG | max.16 |
| Shell protection | IP67/IP68 |
| Mechanical operation | >500 mating cycles |
| Upper temperature | +85℃ |
| Lower temperature | -25℃ |
| Electrical Characteristics |
| Rated voltage | 300V |
| Pollution degree | | III | |
| Rated current(40℃) | 12A | 9A |
| Contact resistance | ≤10mΩ |
| insulation resistance | ≥100MΩ |
| Materials |
| Pin contact | CuZn |
| Socket contact | CuSn |
| Contact plating | Au |
| Upper temperature | PA66(UL 94V-0) |
| Female insent | PA66(UL 94V-0) |
| Material of cable jacket | PVC or PUR |
| Screw | CuZn |
| Nut | CuZn |

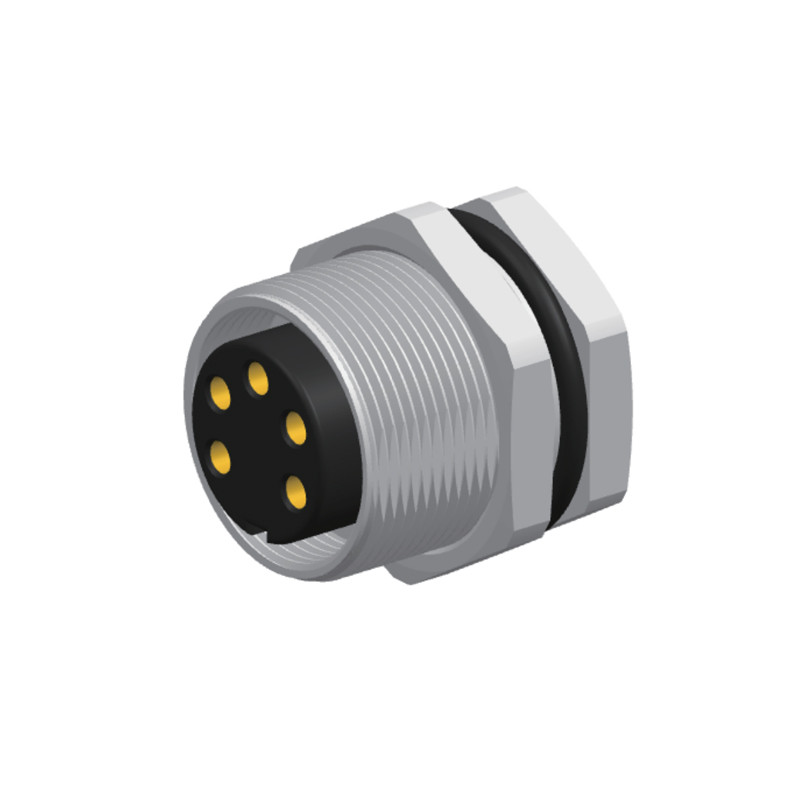

Product photos
FAQ
Q1. What kind of connectors you could supply?
A: M8, M12, M16, M23, Industrial waterproof connector, weipu connector, solenoid valve connector etc, also can customized based on buyer's requirements as long as tell us your details
Q2: How can I get a connector’s sample?
Sample in stock is free; you just need to pay shipping cost.
Q3: How long is your delivery time?
A: Sample is around 5 working days; Mass is 5-15 work days.
Q4: What’s the connector made of?
Material ot contact: CuZn
Contact plating: Au (Gold/gold)
Material of contact body: PBT (UL 94 V-0)
Material of housing: CuZn (brass, nickel plated)
Q5: Why choose us?
A: 100% homemade, competitive price and fast delivery
Q6: Is it OK to print my Logo on the product?
A: Yes, OEM/ODM service is available.
